NightOwl-Hawk

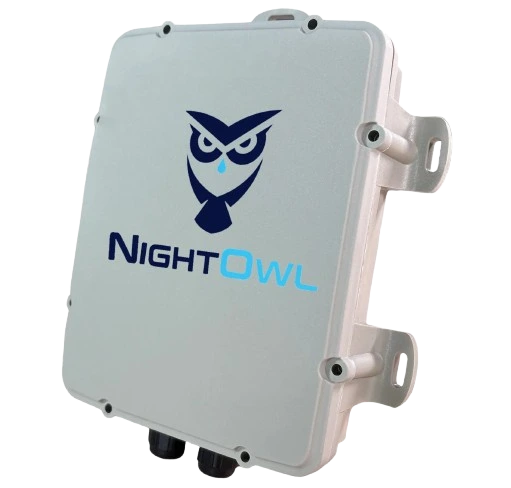

Cellular IoT Data Logger and Sensor Hub

NightOwl Hawk
Datasheet
  • Setting Up Smart Options

Why the Hawk

Built for the field. The Hawk combines enterprise-grade reliability with modular flexibility, giving you exactly what you need without bloat.

Remote Monitoring

Monitor and manage remote assets from anywhere

Modular IO Design

Sensor Hub

Connect multiple sensor types through flexible I/O

Remote Management

Configurable Sampling

Remotely adjust sampling rates and upload intervals

Multiple Power Option

Ultra-Low Power

Extended field life with flexible power options

future

Future-Proof Connectivity, NTN Ready

LTE-M and NB-IoT with satellite-ready hardware

white

White-Label & Integration

Securely connect data to your preferred platform

Technical Data

  • I/O Card Architecture: One plug-in card defines up to nine inputs and outputs. Choose the card that matches your sensors.
  • Analog Inputs : Card dependent. Up to 4 analog inputs (0-30V) on the AgTech2 card. 4-20mA current input on AgTech1, RS-1, and Bluetooth+ cards.
  • Digital Inputs : Card dependent. Up to 5 digital inputs with pulse counting on the Digital card.
  • Serial and Sensor Interfaces : RS-485 on the RS-1 card. RS-232 and TTL on the Serial card. SDI-12, 1-Wire/iButton, and I2C on select cards..
  • Sensor Power : Switched-ground output plus 3.3V, 5V, and 12V sensor power, card dependent.
  • Connectivity : LTE-M (Cat-M1) and NB-IoT connectivity for dependable remote monitoring.
  • NTN Ready : Satellite-ready hardware, enabled through a future firmware update.
  • GPS : Onboard GPS location support for remote device tracking.
  • SIM : Internal Micro 3FF SIM.
  • Antennas : Internal cellular and GPS antennas, with optional external cellular antenna.
  • Power Options : Rechargeable LiPo, D Cell lithium, or external 6-28V DC. Solar compatible.
  • Enclosure : IP68 waterproof, impact-rated housing with optional GORE vent. Two sizes.
  • Operating Range : Field rated -30°C to +60°C.
  • Installation : Modular card design. Fit the I/O card that matches your sensors.
  • Real-Time Monitoring : Continuously collects and transmits sensor data.
  • Smart Alerts : Notifications when sensor thresholds or events are met.
  • Onboard Task Management : Schedules jobs and triggers responses on thresholds and events, even without cellular coverage.
  • Store and Forward : Flash storage keeps logging during outages and uploads when the connection returns.
  • Well Monitoring
  • Water & Wastewater
  • Pump Stations
  • Tank Levels
  • Irrigation & Agriculture
  • Soil Moisture
  • Environmental Monitoring
  • Storm & Floodwater
  • Utilities
  • Equipment Management
  • Secure Communications : AES-256 encryption between the device and Device Manager, with HTTPS-secured delivery.
  • Remote Firmware Updates : Secure over-the-air firmware push across the device fleet.
  • User Access Control : Role-based permissions for secure account management.
  • Reliable Infrastructure : Built for long-term industrial deployments.
  • Cloud Platform : Access live and historical data through Device Manager from any web browser.
  • Historical Reporting : Generate trends and export logged data.
  • API Integration : Supports integration with external platforms and SCADA systems.
  • Configuration : Remote OTA configuration and device management.
Datasheet

Power, Precision, and Peace of Mind

Take full control of your water systems with NightOwl – Hawk  built for the most demanding applications.

Partner With Us
nightowl img
  • Smart Water Monitoring

Stay Ahead with NightOwl-Hawk

Hawk is built for organizations that can’t afford downtime. Whether managing municipal wells, industrial tanks, or multi-site operations, Hawk delivers unmatched monitoring depth and secure control features. Proactive alerts, remote system resets, and automated reporting help you cut costs, extend equipment life, and maintain compliance all from one platform.

Partner With Us
  • FAQs

NightOwl - HAWK FAQs

Get clear answers to the most common questions about the NightOwl Hawk from installation and connectivity to alerts and system compatibility.

NightOwl Hawk is a rugged, plug-and-play cellular IoT data logger and sensor hub designed to collect, transmit, and monitor data from a wide range of industrial sensors. It enables real-time remote monitoring, cloud connectivity, and reliable data logging for water, wastewater, environmental, and industrial applications.

Hawk supports a broad range of industry-standard sensors, including 4–20mA analog sensors, digital inputs, pulse-counting devices, and Modbus RTU (RS485) equipment. Its flexible I/O makes it easy to integrate with existing monitoring systems and expand as your application grows.

Yes. Multiple Hawk devices can be managed from a single cloud dashboard, allowing operators to monitor assets, receive alerts, and review historical data across numerous locations.

Yes. Hawk is available in rugged industrial enclosures designed for demanding outdoor and industrial environments, with multiple power options including solar and battery configurations.

Yes. Hawk supports Modbus RTU communication and offers integration options for existing monitoring platforms, SCADA systems, and cloud applications.

Users can configure custom alarm thresholds and receive notifications whenever monitored values exceed predefined limits, helping teams respond quickly to critical events.
