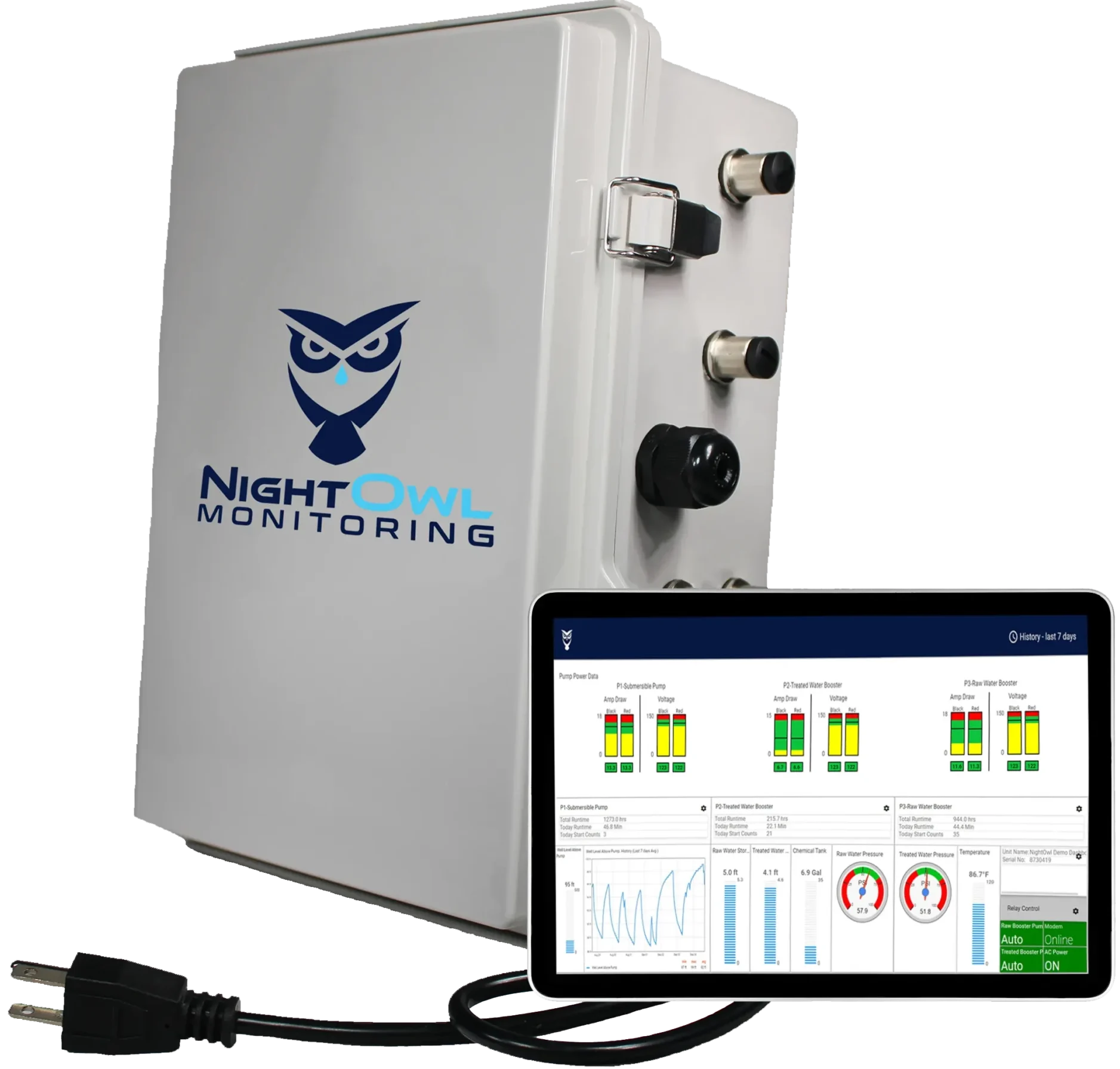

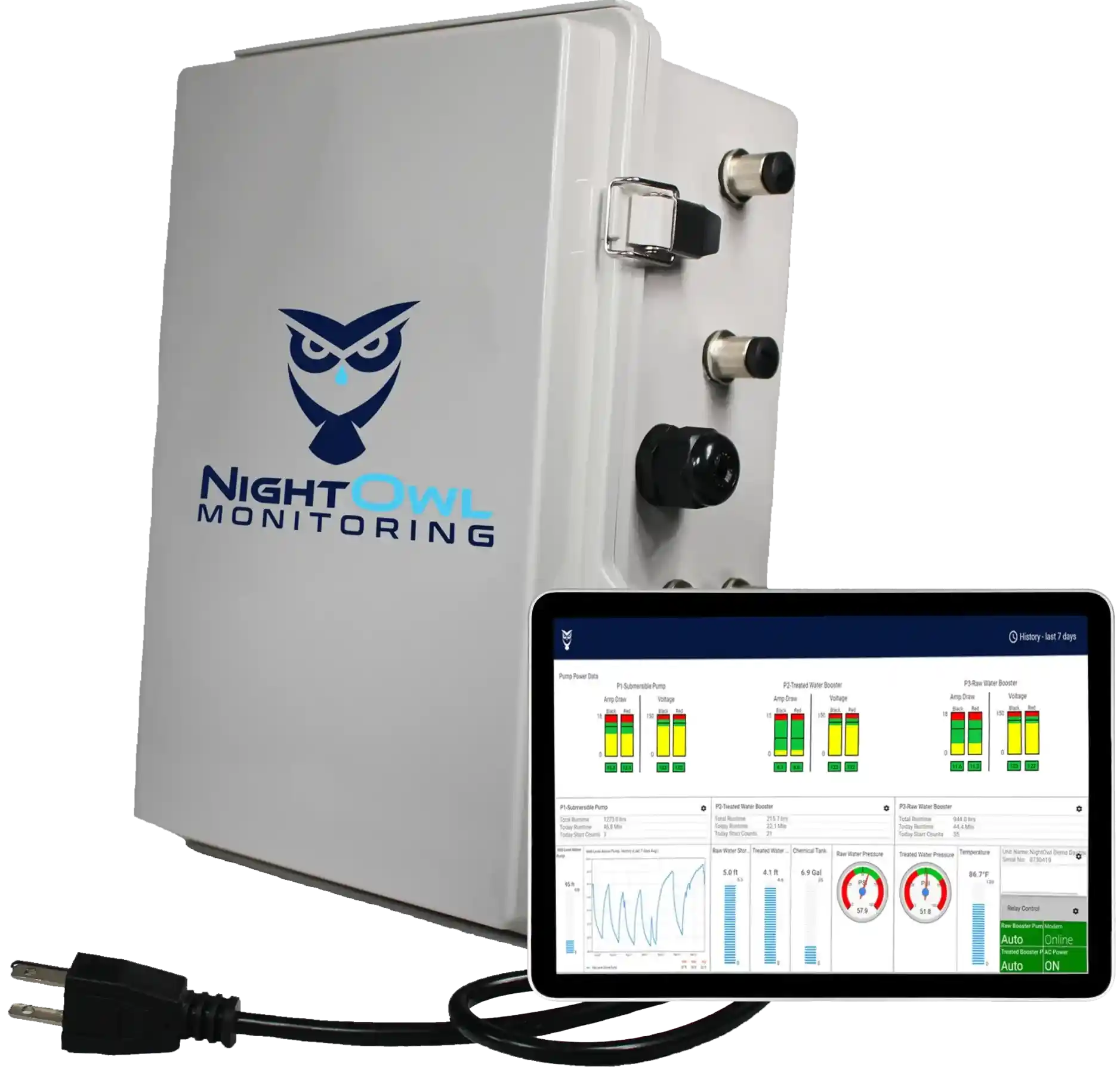

NightOwl – Ultra

Complete Monitoring + Control Platform
hero image
hero image
Datasheet
  • Setting Up Smart Devices

Features

Purpose-Built

Purpose-Built

Designed for water wells and pump systems, not a generic IoT platform.

Plug & Play

Pre-wired, panel-mounted. Field ready in minutes.

UL Listed

UL Listed

Safety-certified for North American installations.

Cloud Connected

Cellular telemetry, web dashboard and automated reports.

Technical Data

  • Analog Inputs : 2 channels, current only (0-20mA, 4- 20mA)
  • Digital Inputs : 4 dry contact detection (input to ground), pulse counting enabled on all 4
  • Modbus Expansion : 1 x RS485 port (Modbus RTU)
  • Control Outputs : 2 x ice cube relay, 7A rating (30V/5A, 250V/5A)
  • Serial Protocol : Modbus RTU / RS485
  • Cellular : 4G LTE, North America (USA, Canada, Mexico)
  • Carriers : Verizon, AT&T, T-Mobile
  • Data Protocol : MQTT / HTTPS
  • Transmission : Scheduled and exception-based
  • Remote Access : Web dashboard, desktop, tablet, mobile
  • API / Export : REST API, CSV export
  • SCADA : Via API / MQTT
  • Input Power : 120VAC
  • Internal Supply : 24VDC integrated converter
  • Enclosure Rating : NEMA 4X
  • Dimensions (H x W x D) : 11.8 in x 11.8 in x 7.4 in
  • Weight : 10.8 lbs
  • Operating Temp : -40F to 185F
  • Storage Temp : -40F to 185F
  • Mounting : Panel / wall mount
  • Certifications : UL Listed
  • Pump Runtime : Cycle tracking, start counts, shortcycle detection
  • Drawdown Analysis : Water level behavior and aquifer health monitoring
  • Load Profiling : kW, efficiency trends, power factor
  • Fault Detection : Dry run, voltage anomalies, cavitation indicators
  • Health Reports : Automated weekly / monthly PDF reports
  • Alarms : Configurable thresholds, SMS, email, dashboard alerts
  • Data Logging : 5-minute interval (default)
  • Municipal Water Systems
  • Agricultural Irrigation
  • Groundwater Conservation Districts
  • Rural Water Supply
  • Oilfield Water Infrastructure
  • Remote Well Monitoring
  • Data in Transit : TLS encrypted
  • Authentication : Hardware-based device authentication
  • User Access : Role-based access controls
  • Firmware Updates : Remote over-the-air (OTA)
  • Data Hosting : Cloud-based
  • Software Access : Web-based, desktop, tablet, and mobile
  • Alert Notifications : SMS, email, dashboard alerts
  • Data Export : CSV
  • System Health Check : Included
Datasheet

Power, Precision, and Peace of Mind

Take full control of your water systems with NightOwl – Ultra  built for the most demanding applications.

Partner With Us
nightowl img
  • Smart Tank Monitoring

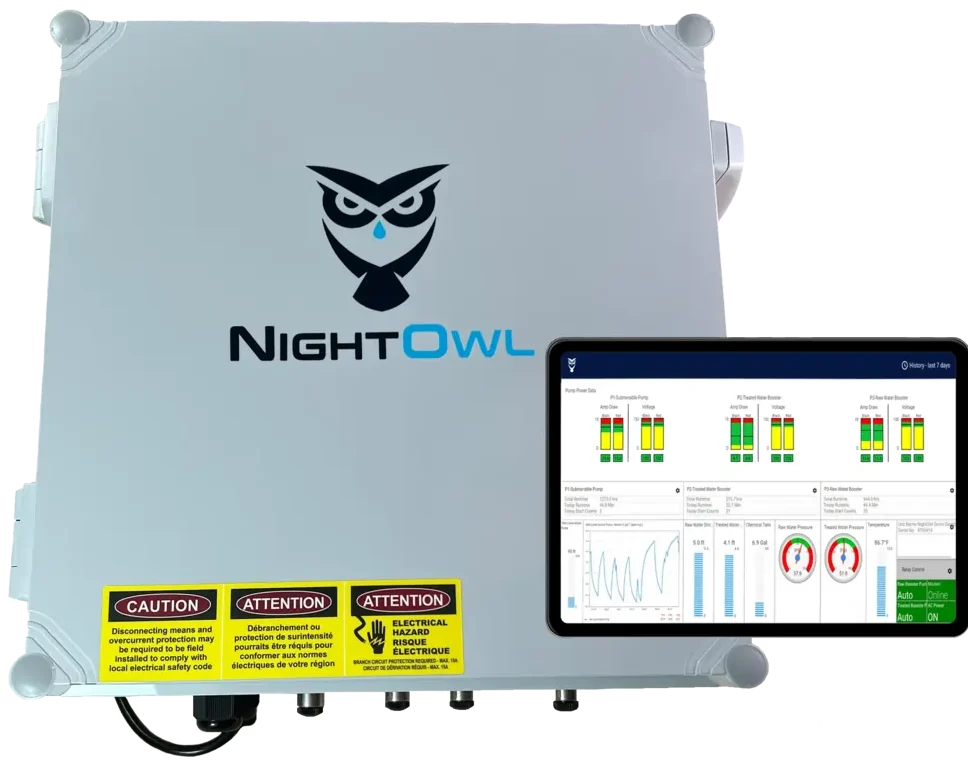

Stay Ahead with NightOwl™ Ultra

Ultra is built for organizations that can’t afford downtime. Whether managing municipal wells, industrial tanks, or multi-site operations, Ultra delivers unmatched monitoring depth and secure control features. Proactive alerts, remote system resets, and automated reporting help you cut costs, extend equipment life, and maintain compliance all from one platform.

Partner With Us
  • FAQs

NightOwl - ULTRA FAQs

Get clear answers to the most common questions about the NightOwl Tank Level Monitor from installation and connectivity to alerts and system compatibility.

Ultra includes all the monitoring capabilities of TLM and Flex, plus advanced remote control functions for pumps, valves, and power systems.
Yes. Ultra supports multi-site and multi-user access with centralized dashboards and reporting.
Absolutely. Ultra is built with encrypted communication, redundancy, and compliance-ready reporting for municipal and industrial clients.
Yes. Unlike Flex and TLM, Ultra is designed for commercial-grade systems and should be installed by certified technicians.
Ultra is ideal for municipalities, industrial facilities, and large-scale water service providers needing both monitoring and remote operational control.
